On the way up: a high-rise service call in downtown Bellevue
Last updated:
Case Study · Bellevue, WA
The Sub-Zero was hot along the bottom. The condenser was buried in dust.
A Sub-Zero 736TCI built-in refrigerator in a downtown Bellevue high-rise was hot to the touch along the bottom grille. Here's what the diagnostic found, what we cleaned on the spot, and what we quoted next, with real photos from the job.
- Location: 10700 NE 4th St, downtown Bellevue high-rise
- Sub-Zero Model 736TCI built-in top-freezer refrigerator
- Complaint: refrigerator hot to the touch along the bottom
- Cause: condenser coil clogged with dust and lint
- Diagnosed & serviced by Max, EPA Section 608 certified
Licensed & Insured
1-Year Warranty
Owner-Operated
What happened
From a hot refrigerator to an annual maintenance plan
The complaint
The owner of this Sub-Zero 736TCI, in a condo tower at 10700 NE 4th St in downtown Bellevue, called because the refrigerator felt hot along the bottom. The compressor label is dated January 2008, so the unit is about 18 years old. That's not old for a built-in Sub-Zero, which typically lasts 20–35+ years.
The diagnosis
With the bottom grille off, the cause was obvious: the condenser coil was almost completely matted over with dust and lint. The 736TCI has two separate sealed systems, one for the refrigerator and one for the freezer, and both reject their heat through that condenser. We checked the compressor's shell temperature (113.2°F) and its running current (0.86 A) and read the data tag and compressor labels before touching anything.
The fix & next steps
We cleaned the condenser on the spot and restored airflow across the coil. During the inspection we also found the door gasket torn and pulling away along the hinge side, so we sent the owner an estimate to replace it. The customer also signed up for annual maintenance, so the condenser gets cleaned before it clogs again.
Real photos
This job, start to finish

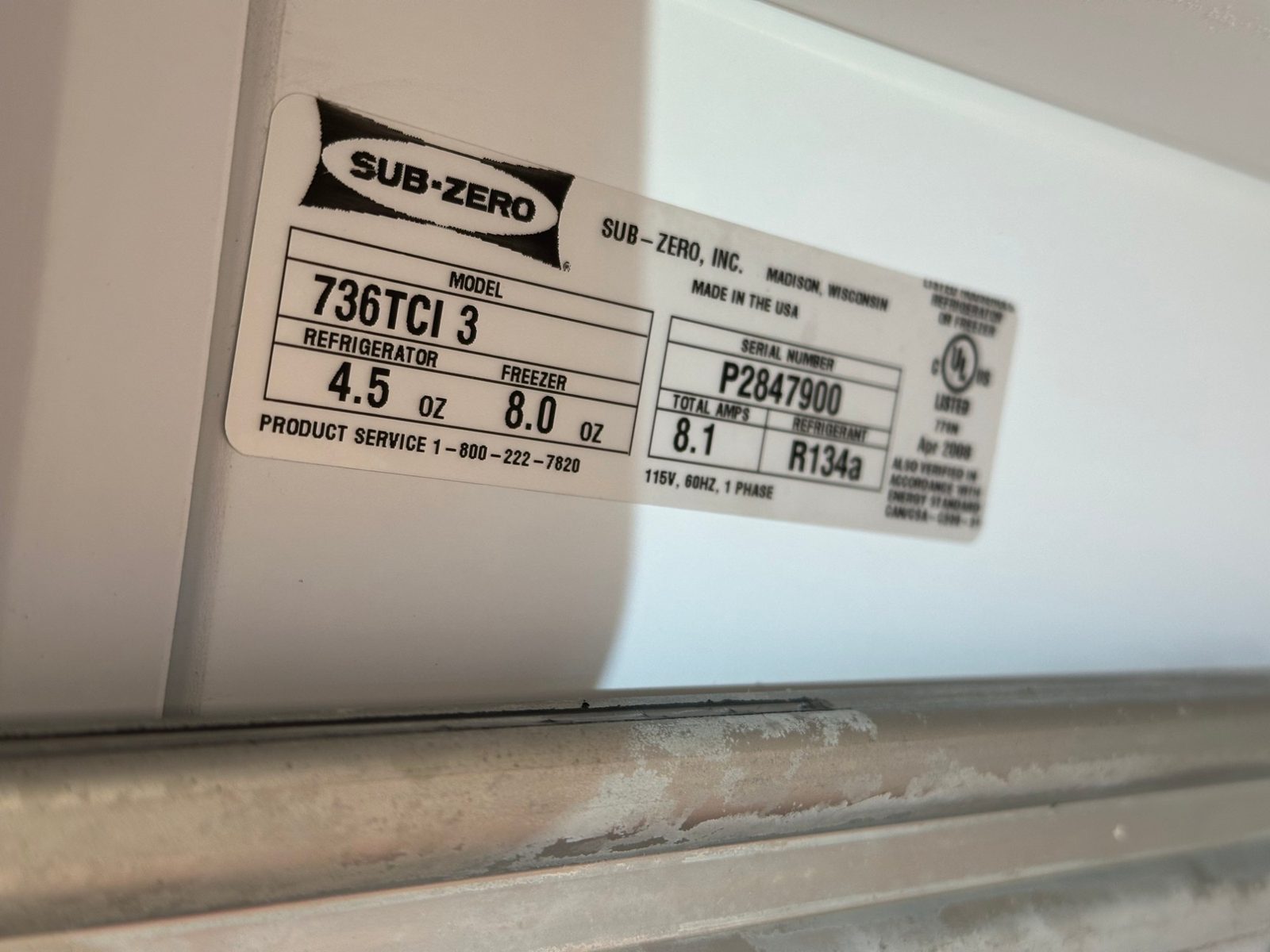

Data tag: Sub-Zero 736TCI, two separate R134a systems

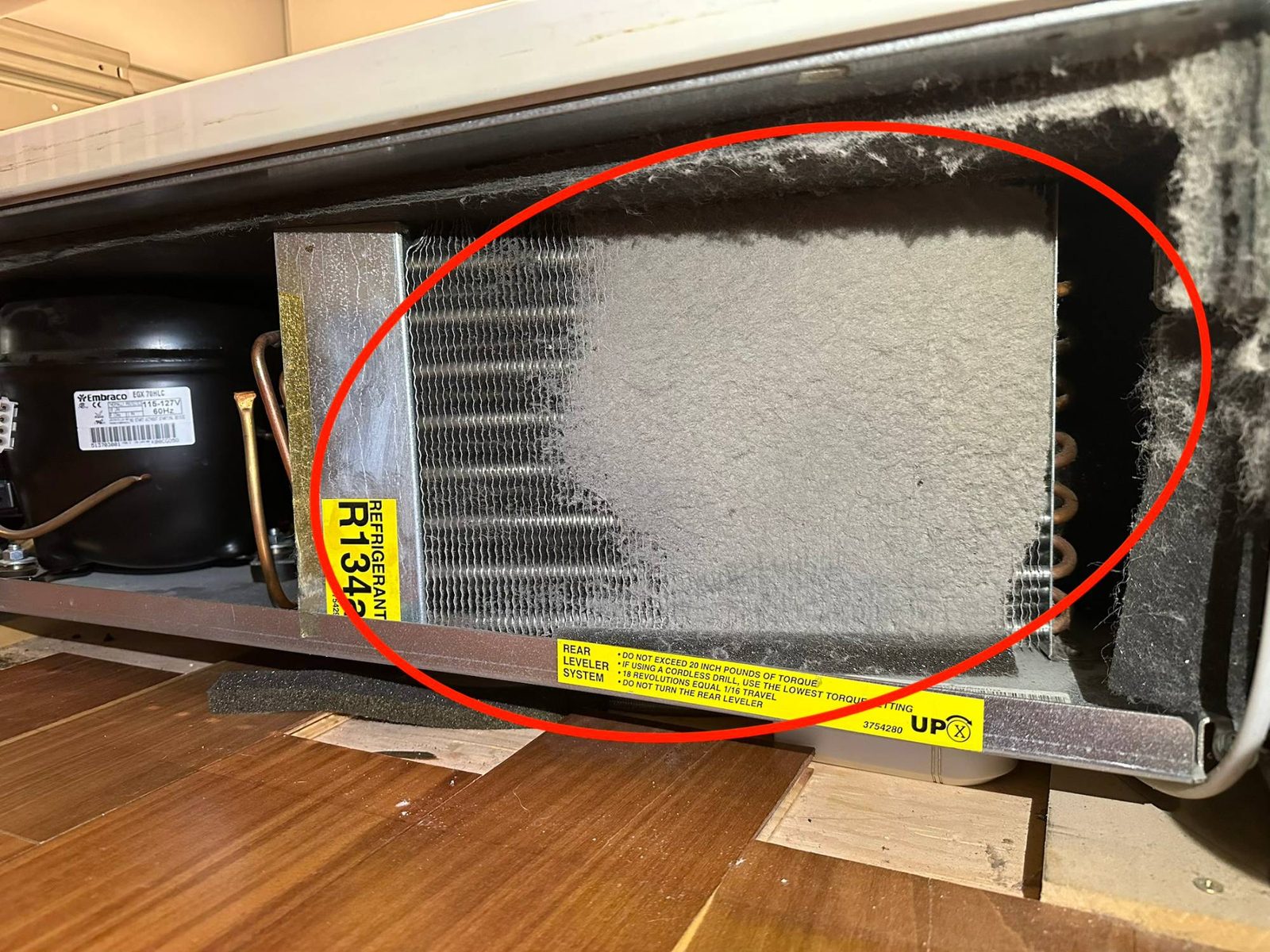

Found: the condenser coil almost completely covered in dust

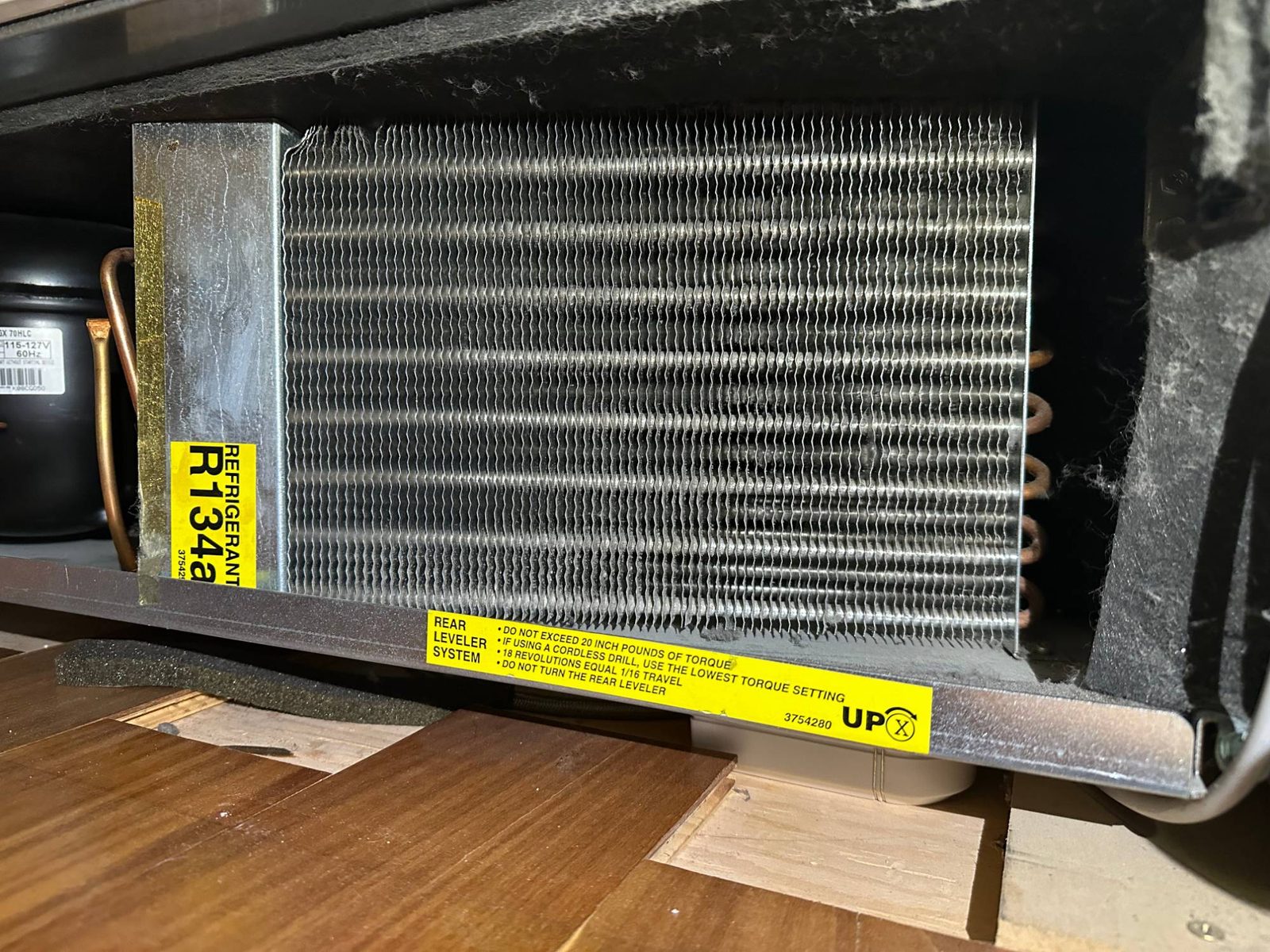

After cleaning: fins open, air can move across the coil again

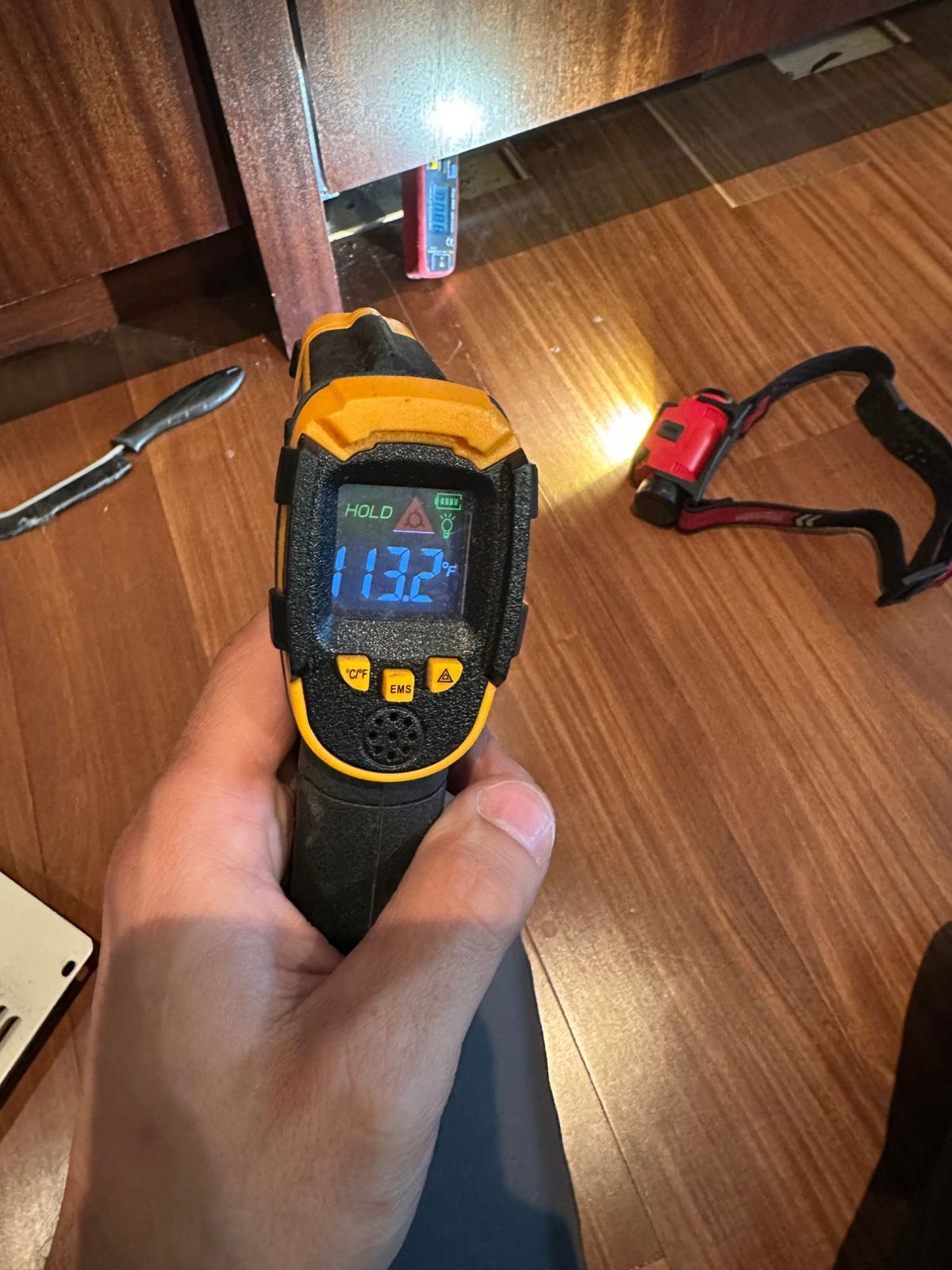

Compressor shell temperature: 113.2°F

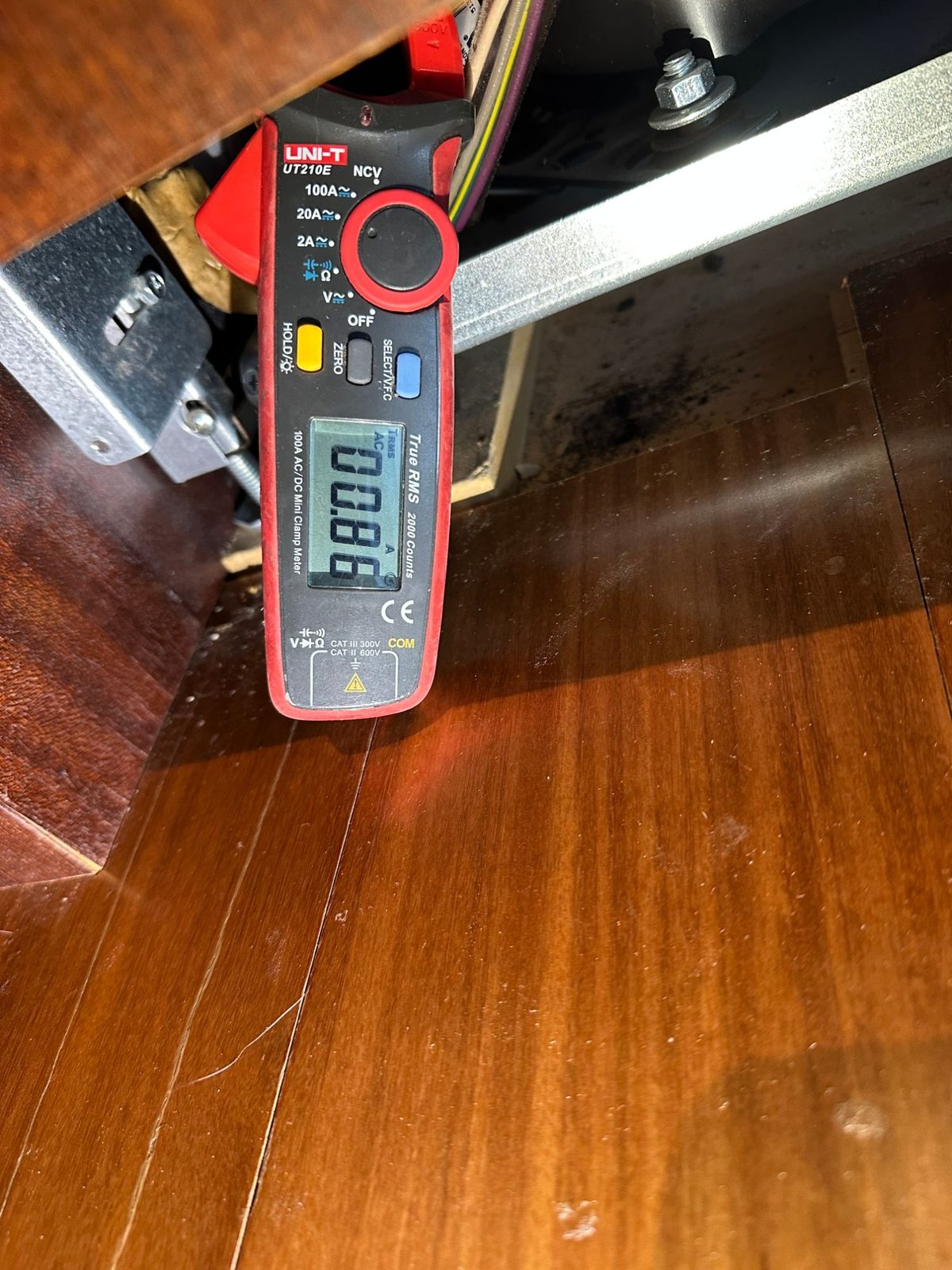

Compressor running current: 0.86 A on the clamp meter

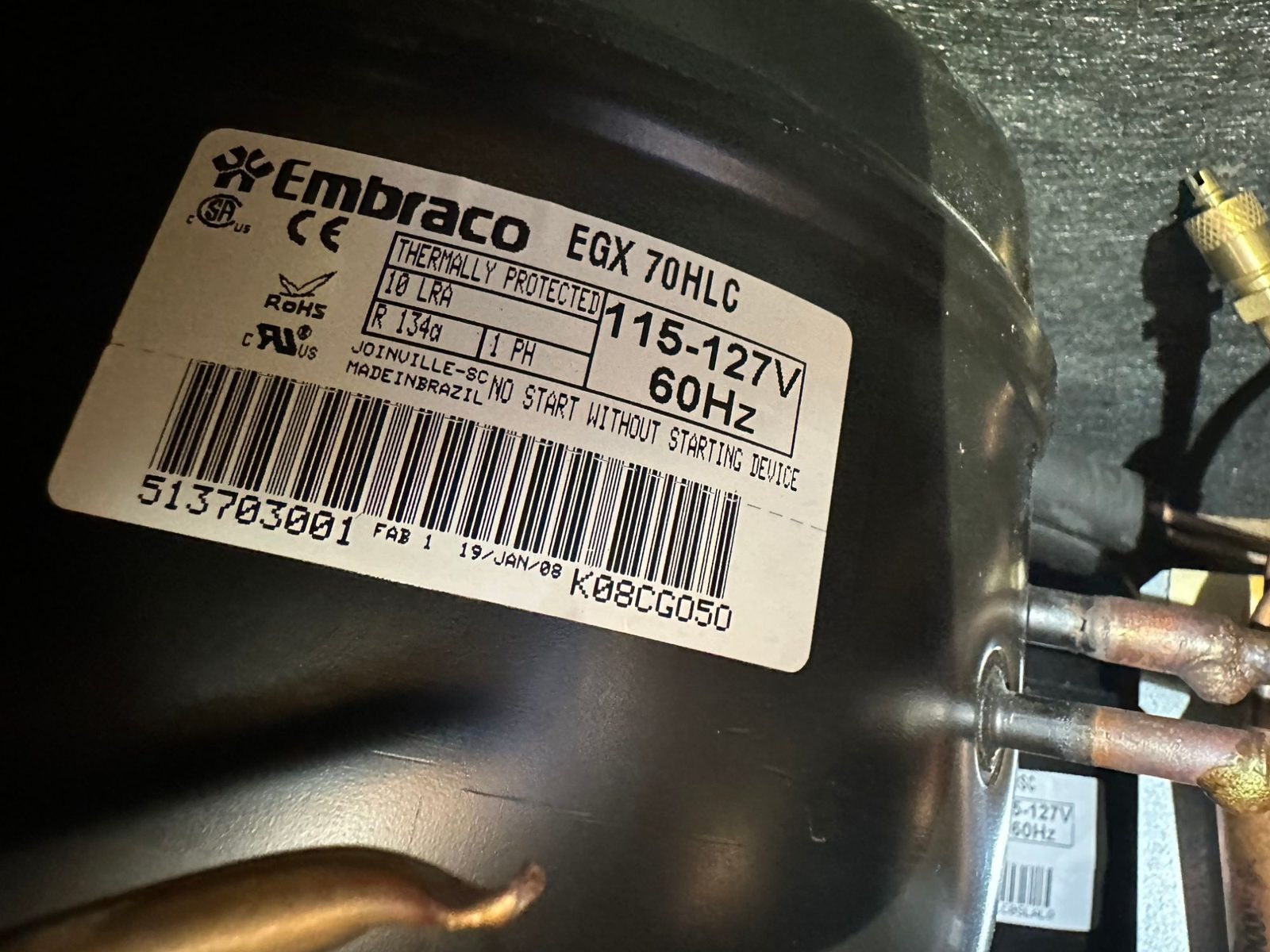

Embraco compressor, label dated January 2008

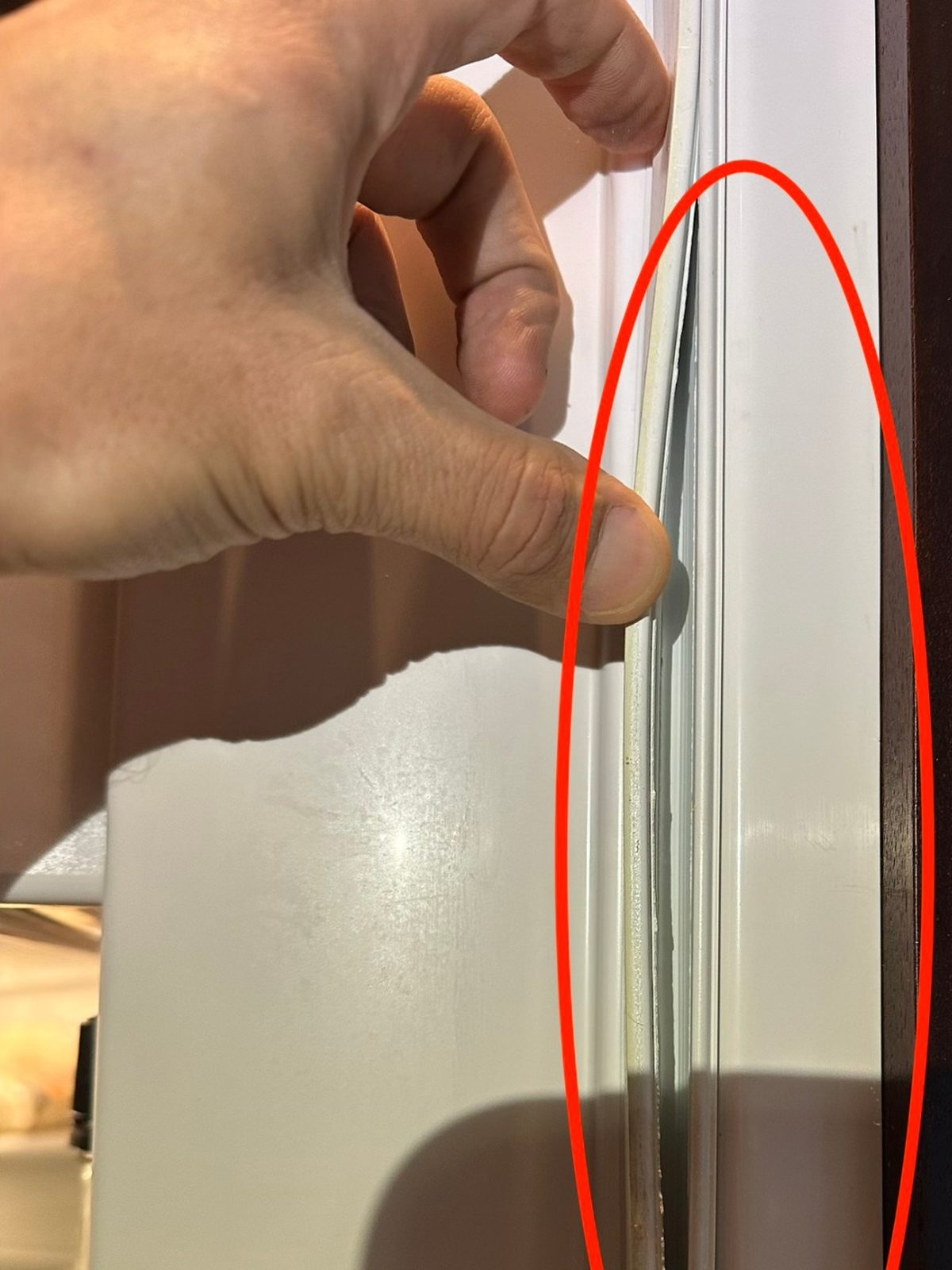

Torn door gasket: estimate sent for replacement
Why choose us
Why Bellevue condo owners call Ace Appliance Service for Sub-Zero service
Measure first, then recommend
We read the data tag, checked compressor temperature and current, and inspected the whole unit before recommending anything. On this call that meant a cleaning today and one targeted estimate, not a list of guesses.
High-rise ready
Downtown Bellevue towers mean elevators, loading rules, and finished built-in cabinetry. We're licensed and insured in Washington, WA Contractor #ACEAPAS774K6, and we work carefully in tight built-in spaces.
Genuine parts, 1-year warranty
Sub-Zero repairs like the gasket replacement quoted here use genuine replacement parts and come with a full year on parts and labor.
Questions
Sub-Zero service in Bellevue: FAQ
Do you service Sub-Zero refrigerators in Bellevue?
Yes, including this Sub-Zero 736TCI in a downtown Bellevue high-rise. See our Sub-Zero repair in Bellevue page for more. We service built-in Sub-Zero refrigerators, freezers, and wine storage with genuine replacement parts.
Do you work in downtown Bellevue high-rise condos?
Yes. This call was at 10700 NE 4th St in downtown Bellevue. Elevators, building access, and built-in cabinetry are routine for us.
Do you offer annual Sub-Zero maintenance?
Yes. The owner in this case study signed up for annual maintenance, so the condenser gets cleaned and the unit gets checked every year, before dust builds up again.
Are you licensed and insured?
Yes, Ace Appliance Service LLC is licensed and insured to work in Washington State. WA contractor license #ACEAPAS774K6.
What areas do you serve?
King and Snohomish County, including Seattle, Bellevue, Kirkland, Bothell, Edmonds, Lynnwood, Everett, Mukilteo, Mill Creek, Snohomish, Kenmore, Woodinville, Mountlake Terrace, Lake Forest Park, Shoreline, Redmond, Issaquah, Sammamish, Mercer Island, Clyde Hill, and Medina.
Common Sub-Zero refrigerator problems
Why is the bottom of my Sub-Zero hot?
The condenser and compressor live behind the bottom grille, and they're supposed to give off heat. When the condenser coil is packed with dust, like on this 736TCI, that heat can't get out, so the area feels much hotter than usual and the compressor has to work harder. Cleaning the condenser is the first thing we check.
Is a dirty condenser a big deal?
It can be. A clogged condenser makes the whole system run hotter and longer. On a refrigerator that's expected to last decades, cleaning it is cheap insurance compared to a sealed system repair.
Why replace a torn door gasket?
A torn or detached gasket lets warm, humid kitchen air into the cabinet every hour of the day. The refrigerator has to run longer to make up for it, and you can get frost or condensation near the leak. That's why we quoted a gasket replacement on this job.
